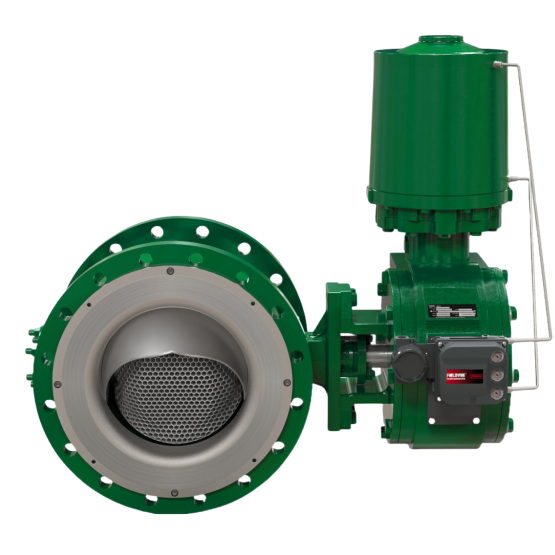

FISHER™ 1061 Pneumatic Piston Rotary Actuator
Fisher 1061 pneumatic piston rotary actuators are used to operate splined‐shaft rotary control valves such as Vee‐Ball™ valves, eccentric disk valves, and butterfly valves. The actuator/valve body linkage of this actuator can be positioned for either push‐down‐to‐open or push‐down‐to‐close action.
Main Features
- With air supply capability of up to 150 psig.
- With a maximum output of 55,700 Lbf.in (6,290 N.M) thrust.
- Optional side-mounted handwheel.
- The body can not realize the loss of air to open or close, need to external complex air circuit.
