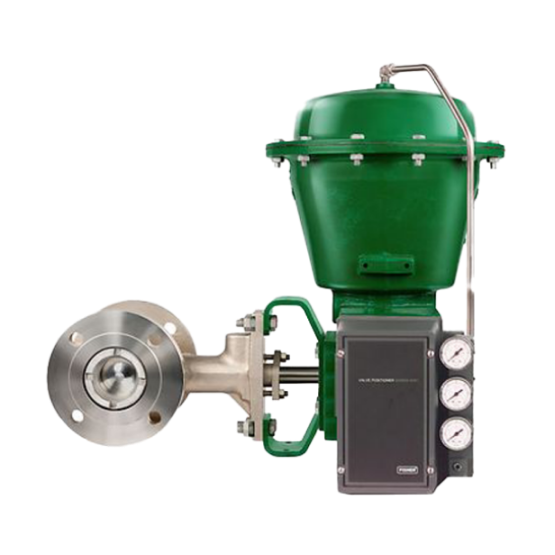

FISHER™ 3610J & 3620J Positioners

The FISHER 3610J /3620J Pneumatic Positioners can be used with single acting rotary actuators to precisely position control valves used in throttling applications. These positioners are rugged, provide valve positioning proportional to the pneumatic input signal or DC current input signal, and are mounted as a single unit to the actuator housing.

Main Features

The positioner provides accurate, fast response and withstands vibration in most factory environments.
Adjustments can be easily made with a screwdriver by removing the cover.
The small loop gain is easily adjustable, allowing the positioner to be fine-tuned for each specific actuator size and application to optimize dynamic response.
The effect of supply pressure variations on positioner operation is minimized.
The housing, components and gaskets are made of materials that can withstand harsh operating environments. Positioner venting cleans internal components and actuator housings for additional protection.
Simple adjustment, switchable between positive and negative action; no additional parts required.

Specifications

	3610J	3620J
Regional Categorization	Group II, Division 2 gases and dusts according to ATEX, Group II, Division 2 equipment according to CUTR	explosion-proof, intrinsically safe, non-flammable, dust-proof
Certification	ATEX, CUTR, PED	CSA, FM, ATEX, IECEx, CUTR, Peso, KGS, INMETRO, NEPSI, RCM
Communication Protocols	3-15 or 6-30 psi, 0.2-1.0 or 0.4-2.0 bar, pneumatic signal	4-20mA
Data Interfaces	without	Wired
Diagnosis	without	without
Input Signal	Pneumatic	Electrical
Maximum Outlet Pressure	50 psi	150 psi
Installation Type	Actuator-mounted	Actuator-mounted
Operating Temperature	Standard temperature	Standard temperature, high temperature
Position Control	Modulation	Modulation
Security Certification	NIL	NIL
Supply Medium	Air, gas	Air
Other Configurations	Contact your local Emerson business partner or sales office for more information on technical specifications or options for this product.

Applications

As an important supporting control component of pneumatic valve, valve positioner is widely used in petrochemical, chemical, power, metal, light industry and other fields.
Suitable for pneumatic single-acting rotary stroke control valves, indirectly controlling flow, pressure, temperature and liquid level in the process.
